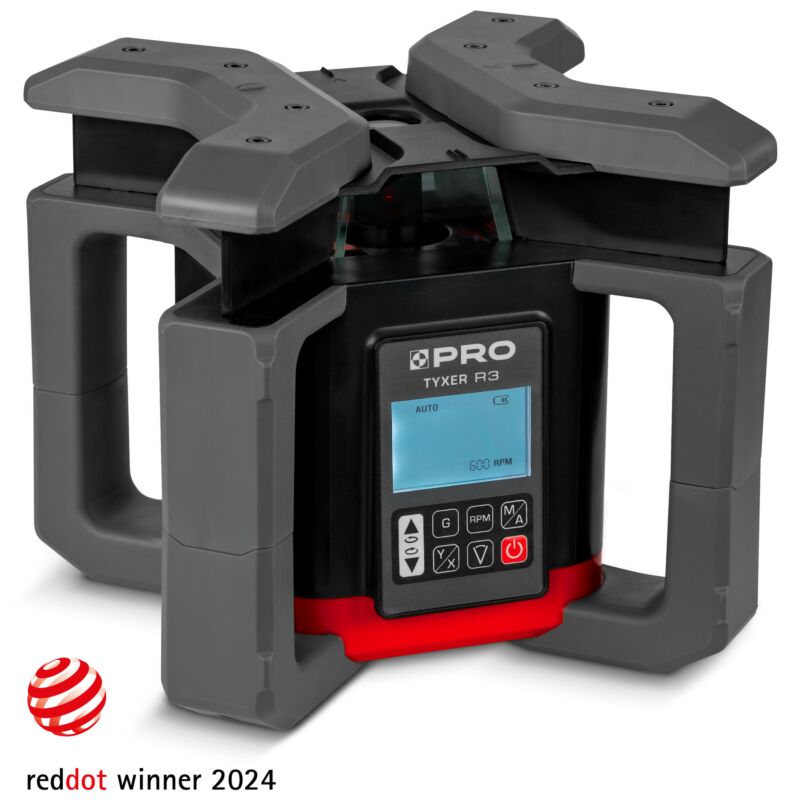

Laser Rotating Level TYXER R3
EAN
5901571537108
Catalog No.
PRO-L1324
- Rotating laser level TYXER R3 with a visible red beam
- For both outdoor and indoor use
- Automatic, motor-driven leveling in both horizontal and vertical planes with the ability to digitally set the inclination independently in two axes X and Y
- IP54 protection class
- TILT alarm function, resulting from a shock or a disturbance of the initial position of the device, which requires manual resetting
- Manual mode for determining a plane at any angle of inclination
- Available in two sets: with a classic laser receiver (detector) with two backlit displays, acoustic signal adjustment, accuracy switching (fine or coarse), with a digital laser receiver (detector) additionally with an enlarged light-sensitive field and the possibility of displaying readings graphically and in millimeters or inches
- Laser diode class 2 M, < 1mW 635 nm
- Working range (diameter) 700m
| EAN | 5901571537108 |
|---|---|
| Catalog No. | PRO-L1324 |
| Size | 160mm x 160mm x 185mm |
| IP rating | IP54 |
| Power Supply | Li-Ion battery, 7.4 V, 4000 mAh |
| Laser beam color | Red |
| Accuracy | ± 1,0 mm/10 m (±0,1 mm/1 m); ±20" |
| Operating temperature | -20°F to 50°F |
| Storage temperature | -15°F to 60°F |
| Vertical accuracy | ±1.0 mm/1.5 m |
| Horizontal accuracy | ± 1,0 mm/10 m (±0,1 mm/1 m); ±20" |
| Źródło lasera | 635 nm LED |
| Rotational speed | 0–60–120–300–600 rpm |
| Set | Yes |
| Scanning angle | 10°/45°/90°/180° |
| Self-leveling range | ±5° |
| Remote control (range) | 30 m |
| Battery life | approx. 45 hours |
| Leveling angle | 360° |
| Accuracy of the lower point | ±1.0 mm/1.5 m |
| Range (radius) | 700 m |
| Range (diameter) | 700 m |
