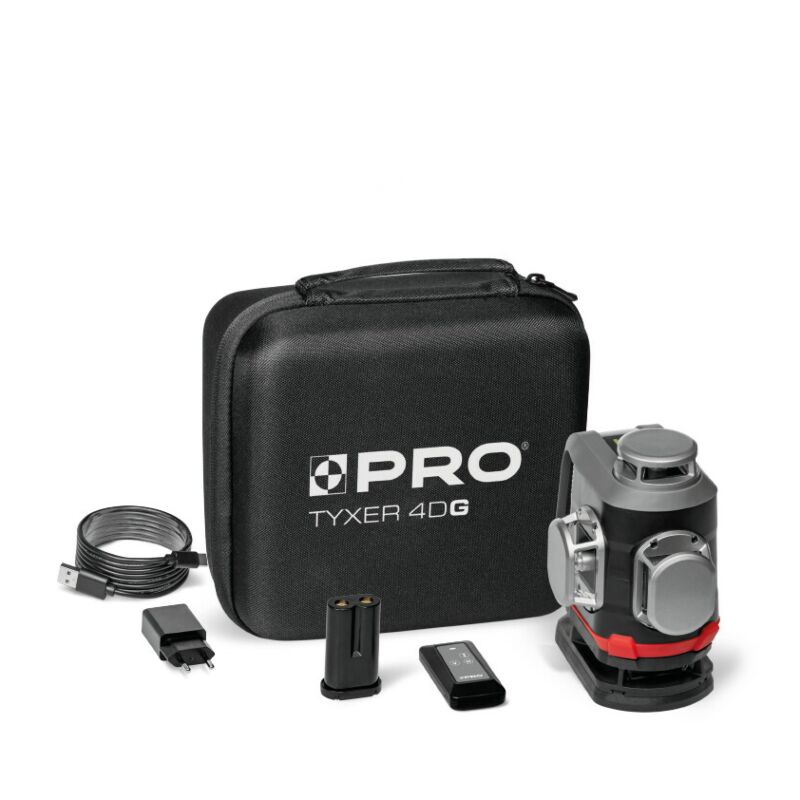

Laser TYXER 4DG

EAN
5901571534794
Catalog No.
PRO-L1308
  • The TYXER 4DG multiline laser generates 4 planes 360°, two horizontal and two vertical intersecting at a 90° angle
  • The TYXER 4DG model has a removable foot element that allows the device to display the bottom beam at a level as low as 8.5mm above the floor
  • The pendulum lock function allows for setting arbitrary slopes. The slope setting mode is indicated by the beam flashing every 5 seconds
  • The pulse mode for working with a detector increases the working range with the laser. In low ambient light environments, it can be used as an ECO function to extend battery life and improve user comfort
  • The laser plumb function - the crosshair on the ceiling and floor determines the vertical
  • The laser self-levels thanks to the magnetic pendulum
  • The device has IP54 protection class
  • The device tilting beyond the working range of ±3° is indicated by a quick blinking of the laser line
  • The 1/4" thread in the laser base allows for quick and easy mounting on a tripod or leveling rod
More Information
EAN 5901571534794
Catalog No. PRO-L1308
Thread 1/4"
IP protection class IP54
Power supply Lithium-ion 5200 mAh
Laser beam color Green
Accuracy ±0,2 mm / 1 m (±2mm / 10m)
Range (max) 30m
Range with detector (max) 50m
Self-leveling system Magnetic pendulum
Manual mode Yes
