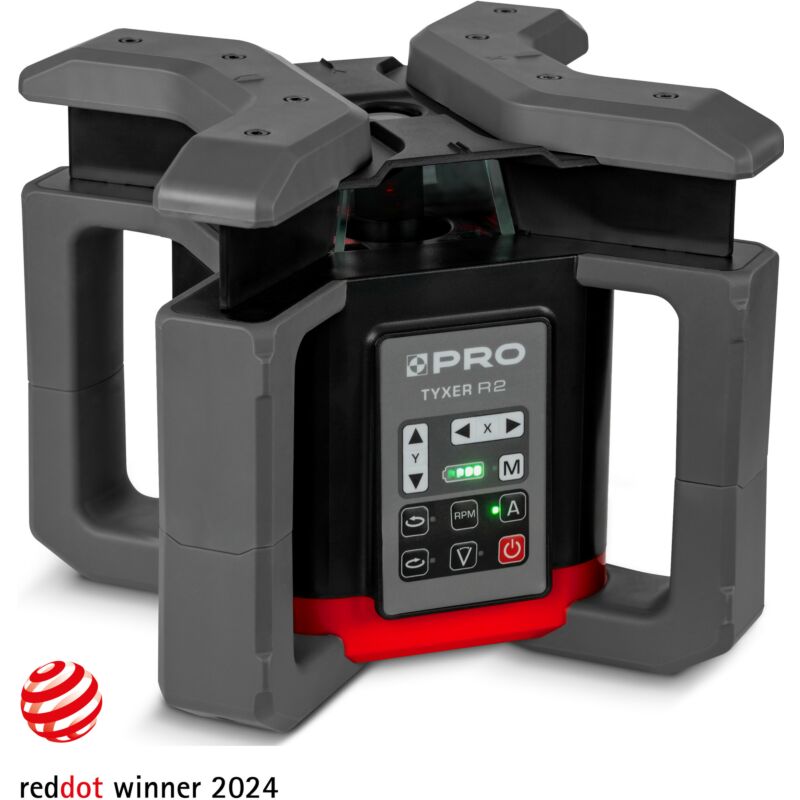

Rotary Laser Level TYXER R2 Digital-mm (red beam, mm detector)
EAN
5901571537078
Catalog No.
PRO-L1323
- Rotary laser level TYXER R2 with a visible red beam
- Suitable for both outdoor and indoor use.
- Automatic motor control: setting both horizontal and vertical levels with the possibility of manually adjusting the tilt independently in two axes X and Y
- IP54 protection class
- TILT alarm function resulting from a shock or a deviation from the initial position of the device, which requires manual resetting
- Manual mode for determining a plane at any angle of inclination
- Available with a digital receiver (detector) for the laser beam, additionally with an enlarged light-sensitive field and the ability to display readings graphically and in millimeters or inches
- Working range (diameter) 700m
- Laser class 2 M, < 1mW 635 nm
- Kit includes: Rotary laser level PRO TYXER R2, Li-Ion 7.4V 4000mAh battery, carrying case, red laser beam detector with a bracket for a rod, tripod mount, laser target plate, laser glasses, network charger, USB-C, user manual, remote control
| EAN | 5901571537078 |
|---|---|
| Catalog No. | PRO-L1323 |
| IP protection class | IP54 |
| Power supply | Li-Ion battery, 7.4V 4000mAh |
| Laser beam color | Red |
| Accuracy | ± 1,0 mm/10 m (±0,1 mm/1 m); ±20" |
| Range (diameter) | 700m |
| Operating temperature | -20°C ÷ 50°C |
| Storage temperature | -15° C - 60° C |
| Vertical accuracy | ±1.0 mm/1.5 m |
| Horizontal accuracy | ± 1,0 mm/10 m (±0,1 mm/1 m); ±20" |
| Laser source | 635 nm semiconductor diode |
| Rotational speed | 0-60-120-300-600 rpm |
| Set | Yes |
| Scanning angle | 10°/45°/90°/180° |
| Self-leveling range | ±5° |
| Remote control (range) | 30m |
| Battery life | approx. 45h |
| Leveling angle | 360° |
| Lower point accuracy | ±1.0mm/1.5m |
-
