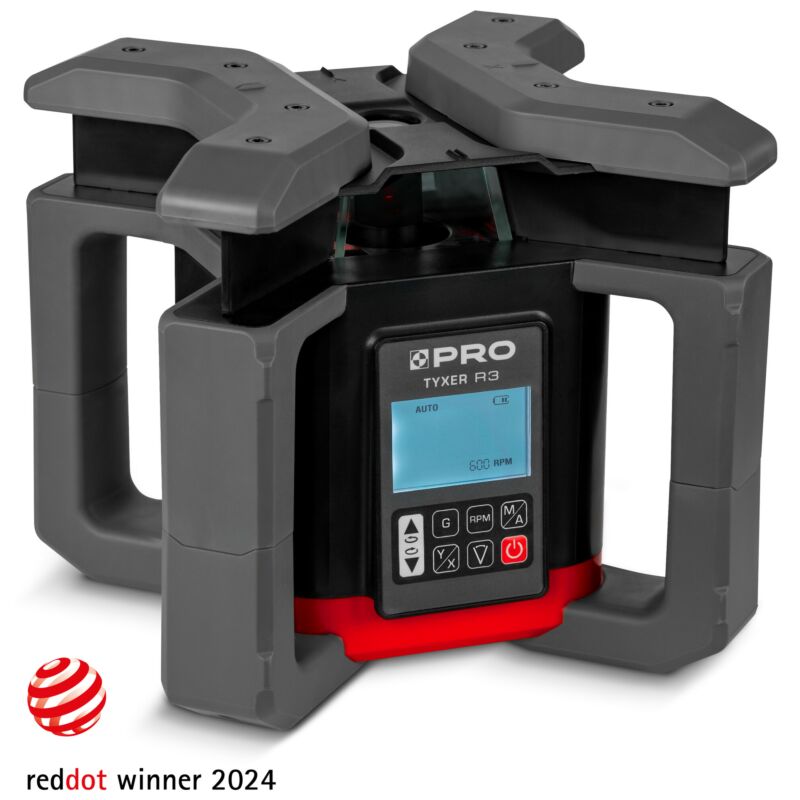

Rotary Laser Level TYXER R3 Digital-mm (digital, red beam, mm detector)
EAN
5901571537092
Catalog No.
PRO-L1325
- Rotary laser level TYXER R3 with a visible red beam
- For outdoor and indoor use.
- Automatic, motor-driven leveling of both horizontal and vertical planes with the ability to digitally set inclination independently in two axes X and Y.
- IP54 protection class
- TILT alarm function, triggered by a shock or disturbance of the instrument's original position, after which the instrument must be restarted manually
- Manual mode for setting a plane at any angle of inclination
- Supplied with a digital laser receiver (detector) additionally featuring an enlarged light-sensitive area and the ability to display readings graphically as well as converted into millimeters or inches
- Class 2 M laser diode, < 1 mW 635 nm
- Working range (diameter) 700 m
| EAN | 5901571537092 |
|---|---|
| Catalog No. | PRO-L1325 |
| IP rating | IP54 |
| Power supply | Li-Ion battery, 7.4V 4000mAh |
| Laser beam color | Red |
| Accuracy | ± 1,0 mm/10 m (±0,1 mm/1 m); ±20" |
| Operating temperature | -20°C ÷ 50°C |
| Storage temperature | -15° C - 60° C |
| Vertical accuracy | ±1.0 mm/1.5 m |
| Horizontal accuracy | ± 1,0 mm/10 m (±0,1 mm/1 m); ±20" |
| Źródło lasera | 635 nm semiconductor diode |
| Rotation speed | 0-60-120-300-600 rpm |
| Set | Yes |
| Scan angle | 10°/45°/90°/180° |
| Self-leveling range | ±5° |
| Remote control (range) | 30m |
| Battery life | approx. 45h |
| Leveling angle | 360° |
| Bottom point accuracy | ±1.0 mm/1.5 m |
| Range (radius) | 700m |
| Range (diameter) | 700m |
-
